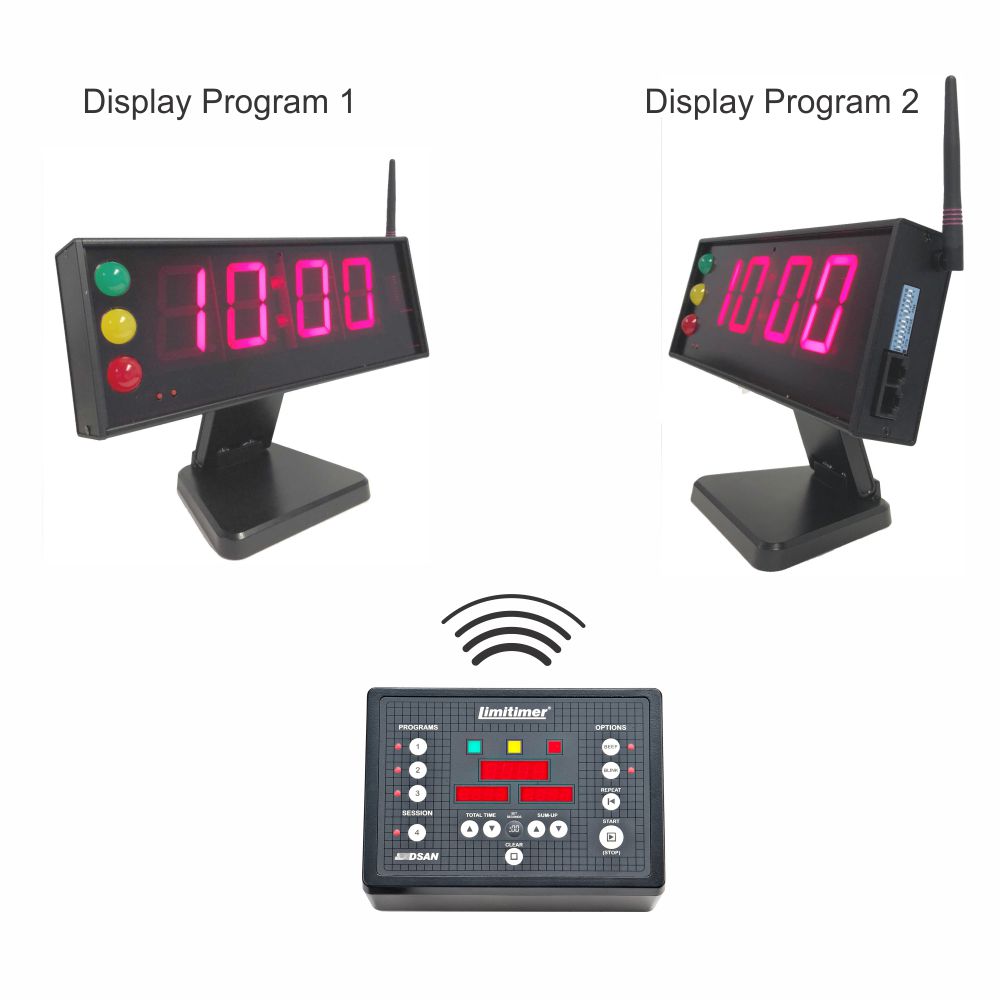

Audience signal lights are driven directly from Limitimer. They may be configured to receive any or all Limitimer programs, to beep on red light, to stop counting at 0:00 (or continue) and to display time-of-day when the connected timer is off. (For time-of-day display, signal light must be locally powered - 12V power supply included.)
Input RJ-45 jacks on the back and on the side. Output RJ45 jack (on side) allows interconnection to additional Limitimer signal lights.
Available with integrated Bluetooth module (Model ASL2-ND3BT) to receive timer data wirelessly from 250 feet. (Requires a Limitimer timer console with Bluetooth transceiver - model PRO-2000T - or a Limitimer with a standalone Bluetooth transmitter - model TR-2000BT ).
Back side has 75MM spaced threaded holes to attach standard VESA brackets.* Available with a deskop stand that mounts to the back and can collapse for eash storage or mounting to wall (see model ASL-STD75).
*See User Guide for maximum screw length.
Dimensional drawing
User Guide
Flyer
|

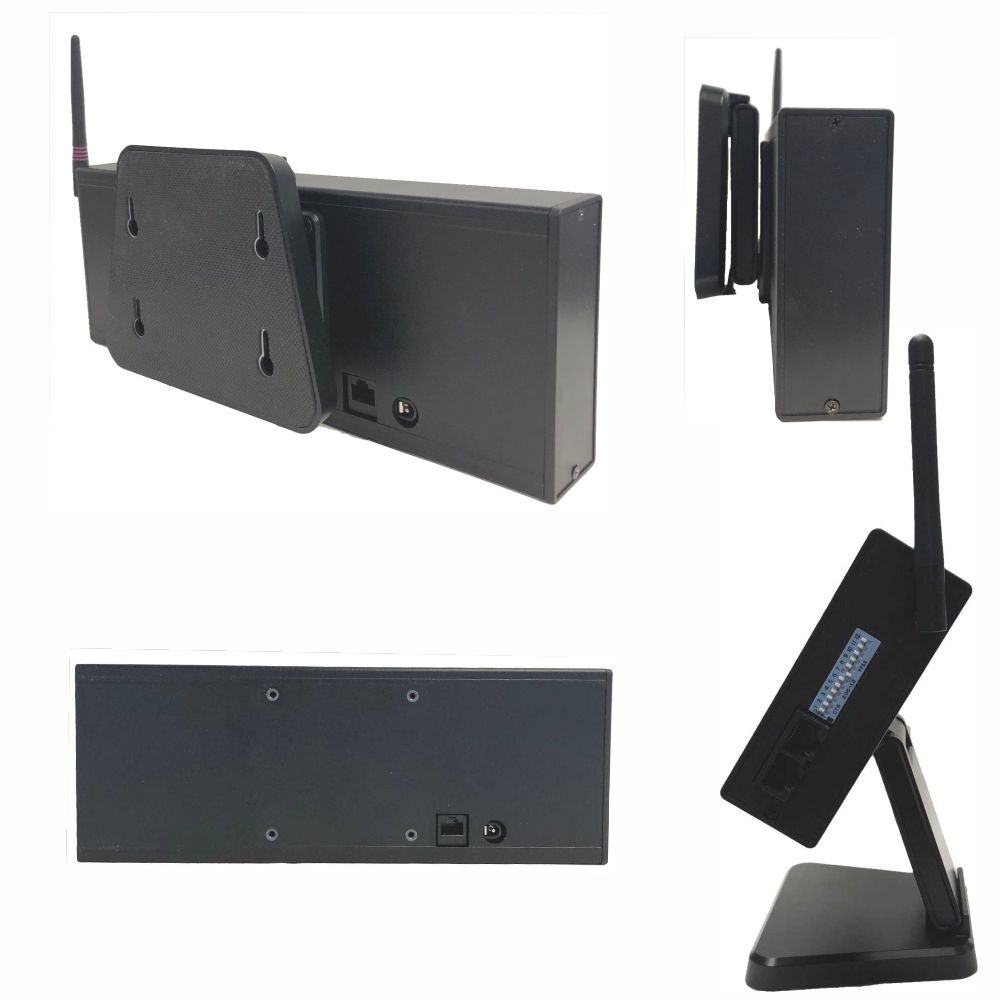

RJ-45 jacks on both back and side for flexible installation

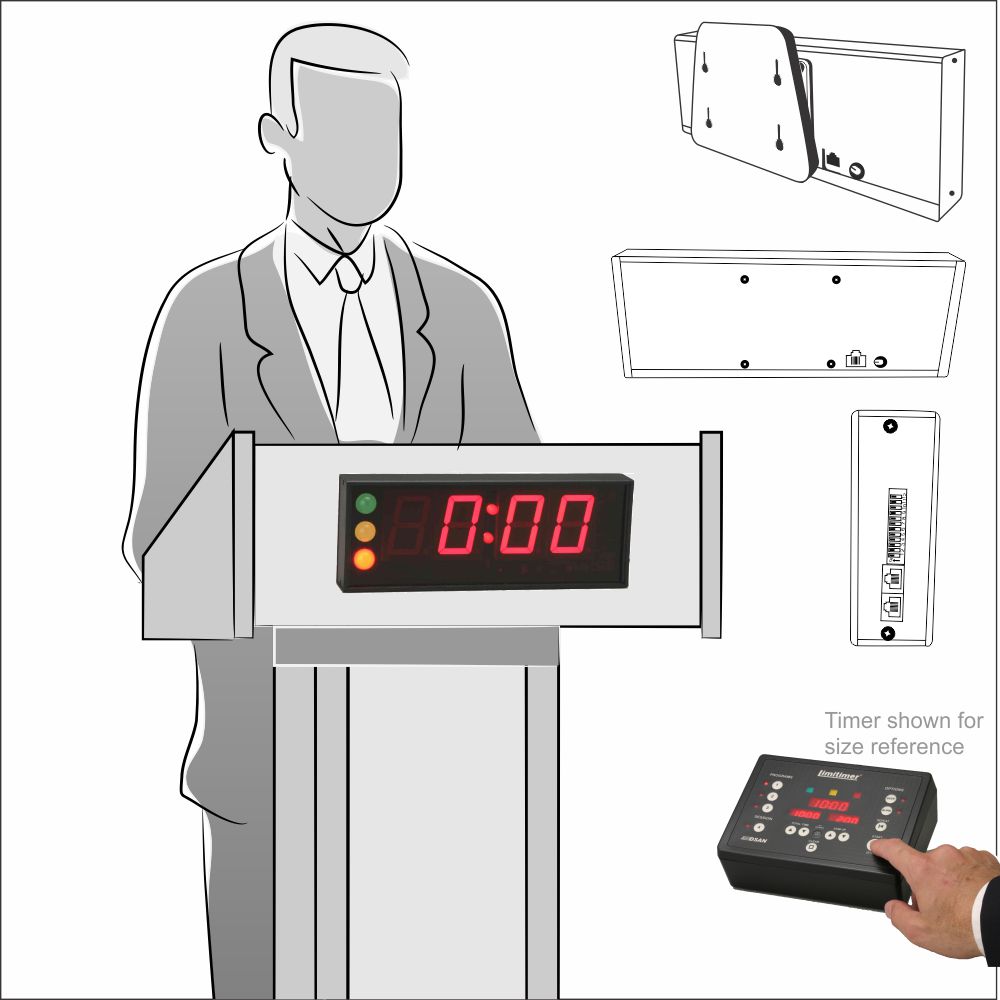

Ideal size for mounting in front of lectern |
Available with optional desktop stand
Optional stand affixes to with M7 screws |
75MM standard VESA mounting holes
A variety of mounting hardware is available |
)
