CLick here to download the configuration application.

After the application is launched, power the extender with the external power supply and connect to the computer via USB.

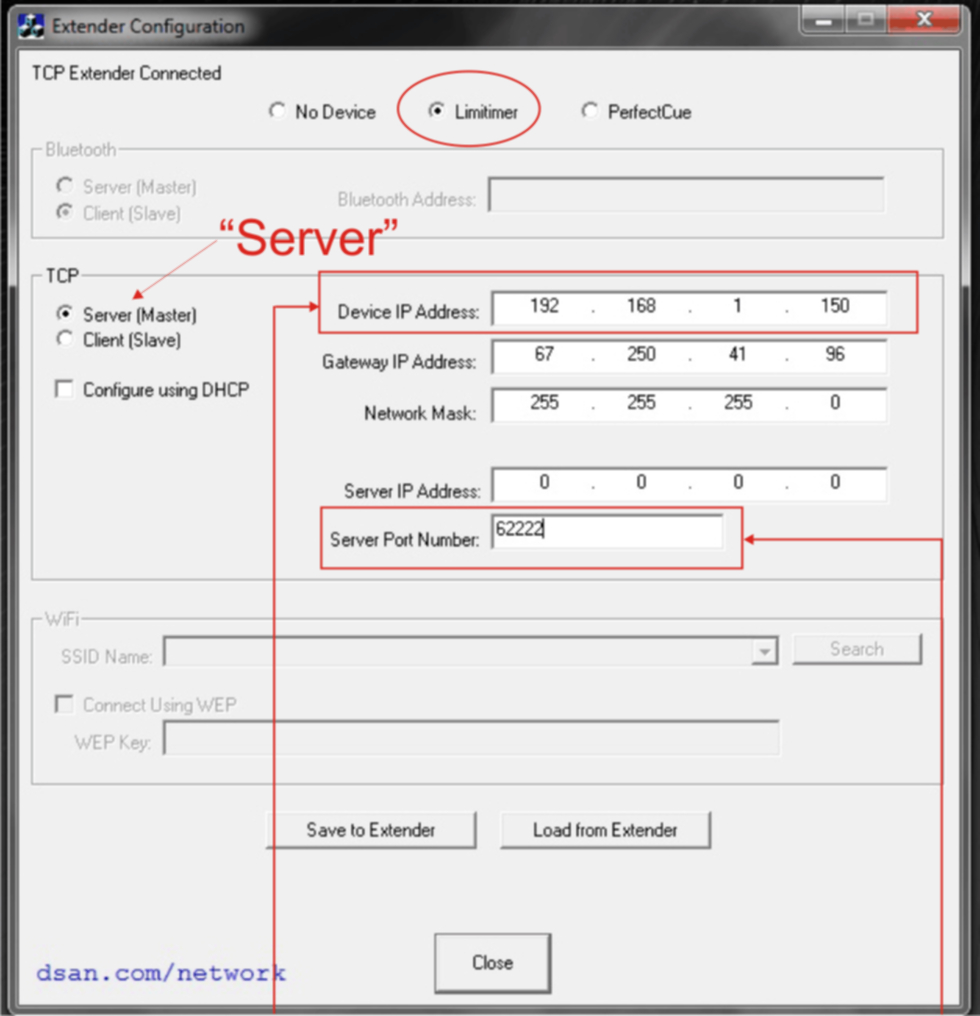

Obtain an unused IP address from your network administrator as well as an unused port and configure extender as a server. (Note: Use the IP address you obtained as the device address - the device is being used as the server.

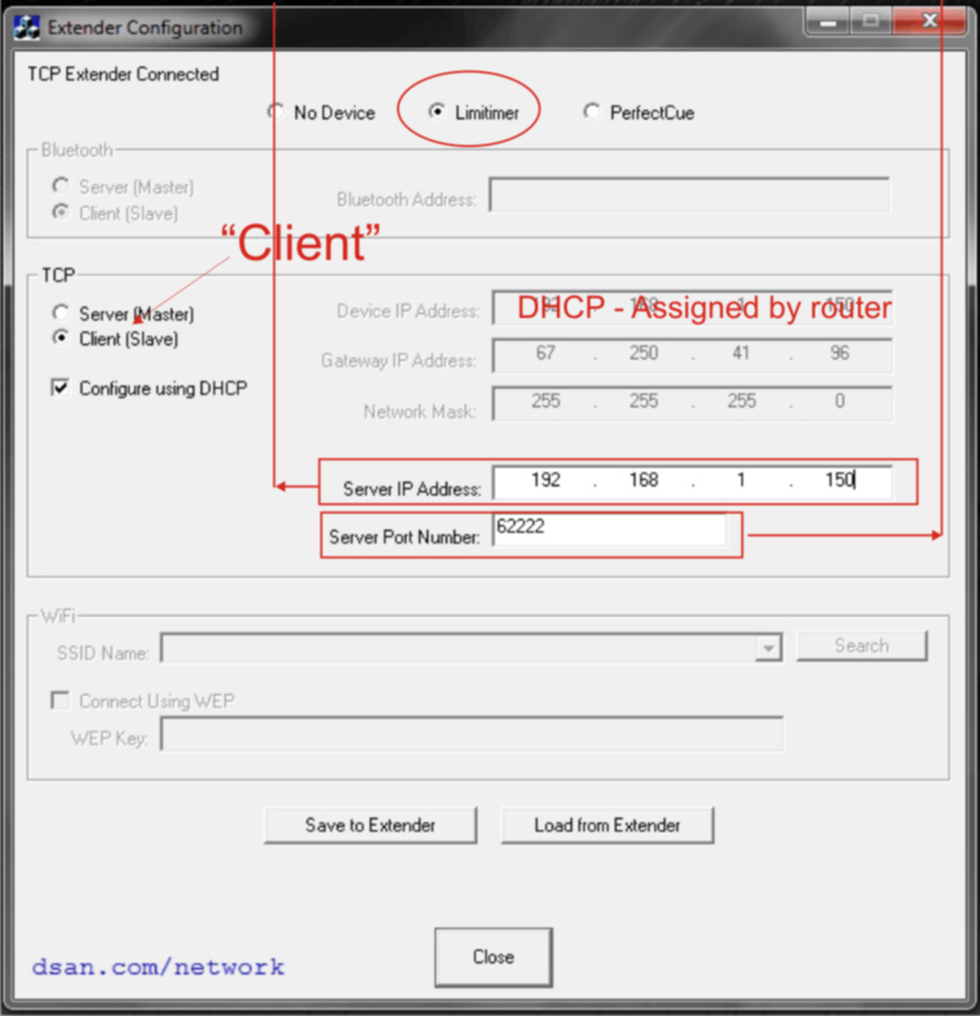

Configure another Extender as a client. As soon a you click "Use DHCP" the device IP address text box is disabled because the network router will assign (and probably remember) its IP address.

Enter the IP address and port of the server-configured router.

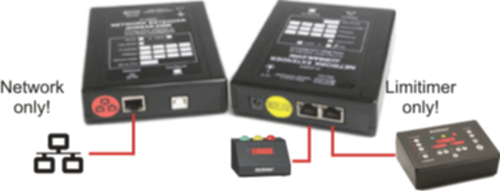

Connect a signal light. If a Liimiter is connected to the server-configure extender, you should see the signal light display the Limitimer data. See PC-Client to use your PC to test the connection.
